Stay connected to your vessel with 5G monitoring and optional satellite tracking that delivers real-time insight, alerts, and peace of mind whether you’re at the dock, crossing borders, or exploring remote waters.
BRNKL 5G was built for boaters who need reliable security and monitoring no matter where they travel. With built-in roaming, real-time updates, and mobile alerts, it eliminates the hassle of SIM swaps or hidden fees — keeping you informed from shore to sea.
5G packages starting at $895 USD
| General | |
|---|---|
| Dimensions | 5″x 3.543″ x 1.9685″ (127mm x 90mm x 50mm) |
| Weight | 0.53 lb (0.24kg) |
| Temperature | -20°C to +75°C / -4°F to 167°F |
| Power Consumption | <20uA (standby), <35mA (active) |
| Antennas | GPS (external), Mobile network (external) |
| Mounting | Mounting plate |
| Battery | 1200mAh |
| IP Rating | N/A |
| Mobile Data Network | |
|---|---|
| Coverage | Network coverage worldwide |
| 5G/4G LTE-M | Cat-M1 |
| Service | Data only – Annual or monthly |
| Service Provider | Barnacle Systems |
| Sensors | |
|---|---|
| GPS Receiver | GPS, Galileo, GLONASS, BeiDou |
| Accelerometer | ±16g; 16384 LSB/g |
| Gyroscope | ±125 deg/sec; 262.4 LSB/deg/sec |
| Temperature | -20 to +75°C; ±3°C |
| Humidity | ±3% relative humidity |
| Barometric Pressure | ±0.25%; ±1.5 Pa/K |
| Status Indicator | |
|---|---|
| LED indicator light |
| Included Items | |
|---|---|
| BRNKL, external cell and GPS Antenna |
| Warranty | |
|---|---|
| 2 year warranty |
| Connections | |
|---|---|
| Analog Inputs | 4 wired (5-32V DC) |
| Digital Inputs Power | 2 wired (9-32V DC) |
| Digital Inputs Ground | 4 wired |
| Digital Outputs Ground | 2 wired (1.5A max) |
| Ground Connections | 2 wired |
| External Device Port | 1 wired (proprietary) |
| Antenna Ports | 2 SMA ports |
| BRNKL Interface | |
|---|---|
| Mobile Devices | iOS app, Android app or browser |
| Browser Compatibility | Chrome, Safari, Firefox, Edge |
| Required Connection | Internet connection |
| Camera | |
|---|---|
| Resolution | 800 x 600 |
| Connection | Wired, proprietary cable |
| Night Vision | Infrared image sensor |
| Water Rating | IP65 |
| Cable Length | 2m (can be extended) |
BRNKL 5G is engineered for boaters who need assurance that their vessel is protected day and night. With redundant connectivity options, rugged hardware, and automatic updates, it ensures your monitoring never stops — even when conditions are unpredictable. Whether you’re docked at the marina, anchored offshore, or moving between networks, BRNKL 5G keeps you covered.

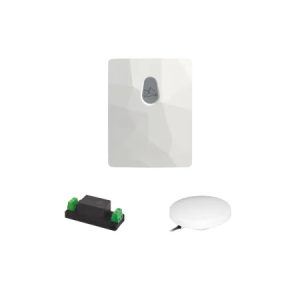

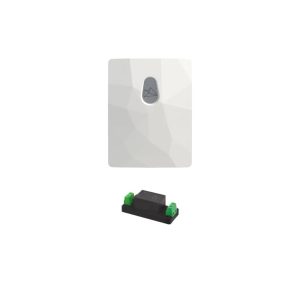

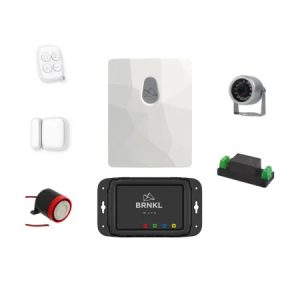

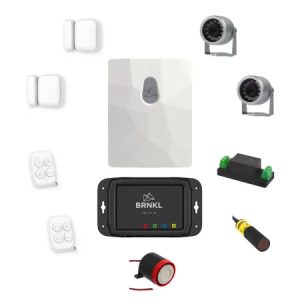

Our BRNKL kits make it easy to choose the right accessories and get started with boat security and monitoring. Each kit comes with a base unit and select accessories that are frequently purchased together, depending on whether you’re looking for boat monitoring, security, or both!
Talk to our team about bringing 5G-powered monitoring to your vessel. Get expert guidance and see how BRNKL 5G keeps you connected everywhere.
Get an in-depth look at BRNKL’s interface, features, integrations – and how we can best support your unique needs.
Fill the contact form and we’ll reach out to set up a 15 minute demo.
